Vehicle 51820
Class 110
Builder: BRC&W
Layout: Low Density
Length: 57ft
Coupling Code: Blue Square
Coupling Type: Screw
Gangway Type: LMS
Engines: Rolls Royce 180hp
Transmission: Mechanical
Lot Number: 30592

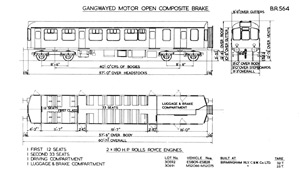

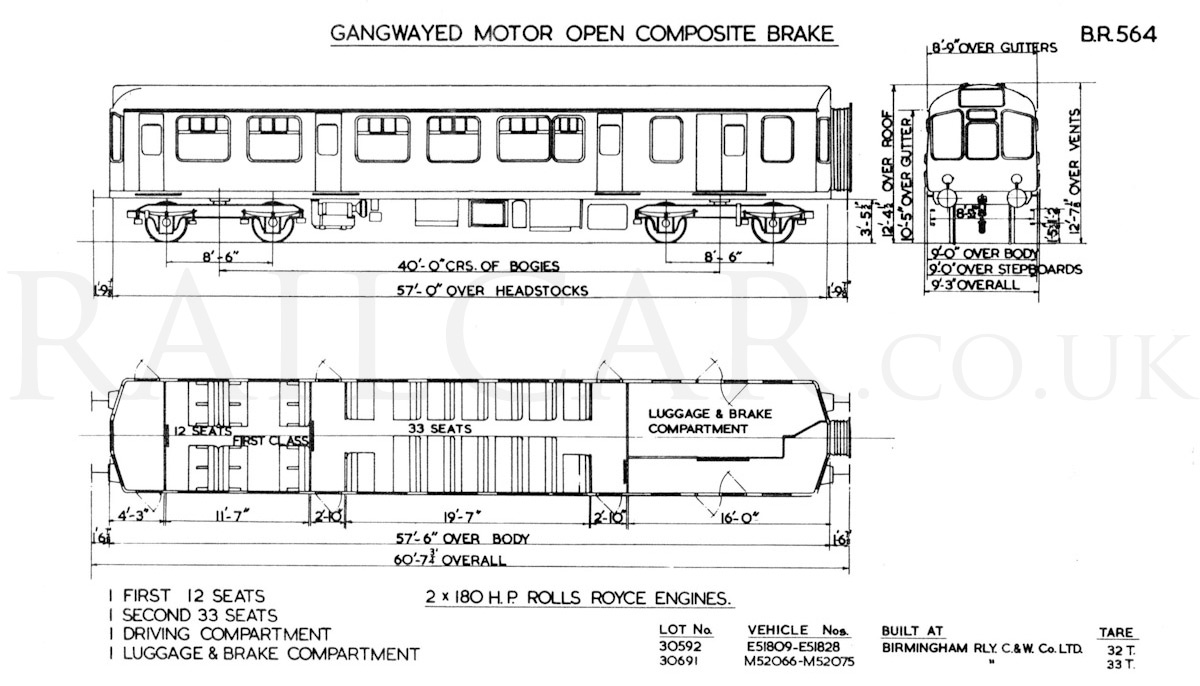

Diagram: 564
Allocations
| 22/09/61 | New to | 56G (Hammerton Street) | |
| Oct-61 | On loan to | 50C (Hull Botanic Gardens) | |
| 3w/e 30/12/61 | Ex-loan back to | 56G (Hammerton Street) | |
| Dec-67 | Depot code change | 55F | |
| May-73 | Depot code change | HS | |
| 13/05/84 | Transferred to | NL (Neville Hill) | - Hammerton Street closed |
| 15/03/87 | Withdrawn from | NL (Neville Hill) |
Refurbished
At Doncaster Works dated 15/08/1980 released in blue/grey liveryDisposal
Scrapped by Mayer Newman, Snailwell
Some sample formations the vehicle has been noted in:
| 51820 | 59704 | 51840 | As delivered to 56G - 22nd September 1961 | ||||||
| 51820 | 59704 | 51840 | Transfer to 50C - Oct-61 - on loan | ||||||
| 51820 | 59704 | 51840 | Transfer to 56G - 3w/e 30/12/61 - ex-loan | ||||||
| 51820 | 59695 | 51840 | Noted 07/10/67 - at Bradford Exchange1 | ||||||
| 51820 | 59707 | 51841 | Noted 23/05/1969 - Leeds2 | ||||||
| 51820 | 59815 | 51840 | Noted 17/10/1969 - Leeds, on 14.05 to Manchester Victoria2 | ||||||
| 51820 | 59574 | 51840 | Noted 21/02/1970 - Leeds, recorded by A S Fowkes. Source data obtained via BR Coaching Stock Group.3 | ||||||
| 51820 | 59704 | 51836 | Noted 28/10/71 - in Sheffield Midland4 | ||||||
| 51820 | 59703 | 51839 | Noted 31/08/72 - in Manchester Victoria1 | ||||||
| 51820 | 59703 | 51839 | Noted 01/09/72 - in Liverpool Exchange1 | ||||||
| 51820 | 59813 | 51833 | Noted 28/08/75 - on Longsight depot4 | ||||||
| 51820 | 59813 | 51833 | Noted 29/03/1976 - at Leeds5 | ||||||
| 51820 | 59813 | 51833 | Noted 08/05/76 | ||||||
| 51820 | 59813 | 51833 | Noted 17/06/78 - at York6 | ||||||
| 51820 | 59813 | 51833 | Noted 19/08/78 - at Bradford Exchange6 | ||||||
| 51820 | 59813 | 51833 | Noted 22/08/78 - on 14:50 Leeds - Bradford Exchange7 | ||||||
| 51820 | 59702 | 52077 | Noted 25/05/79 - at Newark on 19:12 ex-Cleethorpes | ||||||
| 51820 | 59696 | 51834 | Noted circa 10/19823 | ||||||
| 51820 | 59696 | 52081 | Noted circa 10/19823 | ||||||
| 51820 | 59696 | 52081 | Noted 13/10/1982 - Worked 07.53 Manchester Victoria to Leeds3 | ||||||
| 51820 | 59703 | 52084 | Noted 20/01/1983 - at Clayton West, on 18:30 to Huddersfield - last train ever6 | ||||||
| 51820 | 59571 | 51843 | Noted circa 06/19833 | ||||||
| 51820 | 52084 | Noted 07/01/19843 | |||||||
| 51820 | 52084 | Noted 31/03/1984 - on Hammerton Street depot6 | |||||||
| 51820 | 59812 | 52079 | Noted 06/09/1985 - at Preston 6 | ||||||
| 51820 | 52079 | Noted 22/02/1986 - at Leeds City 6 | |||||||
| 51820 | 52079 | Noted circa 09/19863 | |||||||
| 51820 | 52079 | Noted 09/10/19863 |
Formation Sources
1: Leonard Rogers
2: Tony Fowkes / BRCS
3: Eddie Knorn
4: Gerald Brown
5: Peter Wallwork
6: Martin Lumley
7: Phil Shatford
Images:
Unknown date
E51820 is the rear vehicle on this BRC&W Class 110 set departing from Sheffield. Date unknown. Stuart Mackay Collection.
18th June 1978
A Class 110 DMU with E51820 closest in platform 3 at Doncaster on 19 June 1978. MARK LEVING.
5th June 1982
Coming out of a thunderstorm on a very murky day, a 10-Car DMU formation was climbing Farington Curve, heading for home with a Blackpool North to Leeds service on June 5th 1982. The leading set is a three-car Class 110 with E51820 leading. Behind the Calder Valley is a four-car Metro-Cammell Class 111, with a three-car Class 111 at the rear. The 110 units were daily visitors to Preston and Blackpool during the 1970's and the early 1980's on the daily Leeds-Blackpool North and return service that ran via Copy Pit and Blackburn. During weekdays a three-car set would suffice, but on Summer Saturdays the train would be formed of additional units as seen in this view. Martyn Hilbert.
The vehicle is mentioned in the following images:
Date: 22nd January 1983
Class 110 52084 + 59703 + 51820 at Clayton West, leading 51822 + 59710 + 51840, with the 12.50 departure bound for Huddersfield, on 22 January 1983 - the last day of passenger services on the branch. Rob Paterson.
Date: 22nd January 1983
Crowds gather at the Clayton West branch terminus following the arrival of one of the trains on the final day of passenger services from Huddersfield, Saturday 22nd January 1983. The vehicles are 51840 + 59710 + 51822 and 51820 + 59703 + 52084. Andrew Walker.
Date: 25th September 1985
Its 17:03 and 52079+59812+51820 are awaiting departure time from Liverpool Lime Street presumably with a service to Leeds on Wednesday 25th September 1985. Photo by the late Rob Simpson Ian Hazlehurst.
Date: unknown
The Stourton Saloon 975664 / 975637 is seen in the company of Class 110 51820 at York. Undated. Tom Clift.
